Name: LDL212PUR
Brand: STMicroelectronics
SKU: LDL212PUR
Price: 0.54 USD
Availability: InStock

REF: LDL212PUR STMicroelectronics

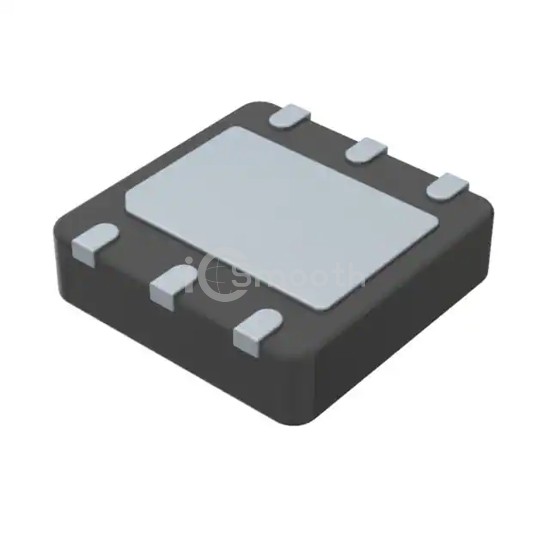

LDL212PUR

IC REG LINEAR POS ADJ 1.2A 6DFN

LDL212PUR is a PMIC - Voltage Regulators - Linear manufactured by STMicroelectronics. IC REG LINEAR POS ADJ 1.2A 6DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 6-VDFN Exposed Pad, current - supply (max) 380 µA.

Datasheet Request a Quote

In Stock: 1,602

Tiered Pricing USD

1+ $0.5400 —

10+ $0.3800 -30%

25+ $0.3396 -37%

100+ $0.2955 -45%

250+ $0.2745 -49%

500+ $0.2618 -52%

1,000+ $0.2514 -53% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	18V
Voltage - Output (Min/Fixed)	1.18V
Voltage - Output (Max)	17.4V
Voltage Dropout (Max)	0.6V @ 1.2A
Current - Output	1.2A

Current - Quiescent (Iq)	380 µA
Current - Supply (Max)	380 µA
PSRR	87dB ~ 50dB (120Hz ~ 100kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-VDFN Exposed Pad
Supplier Device Package	6-DFN (3x3)
