Name: LDL1117S30R
Brand: STMicroelectronics
SKU: LDL1117S30R
Price: 0.58 USD
Availability: InStock

REF: LDL1117S30R STMicroelectronics

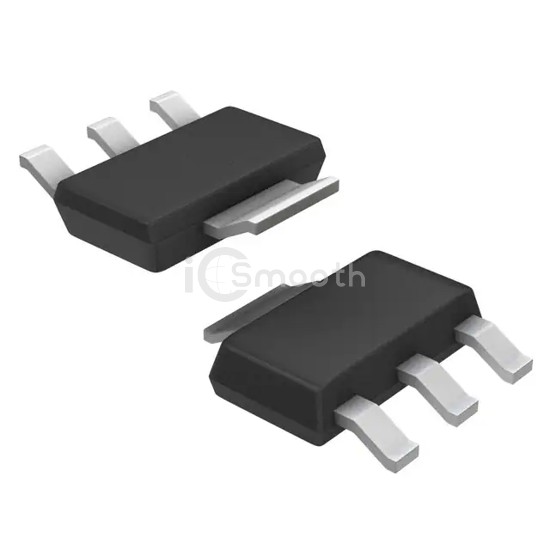

LDL1117S30R

IC REG LINEAR 3V 1.2A SOT223

LDL1117S30R is a PMIC - Voltage Regulators - Linear manufactured by STMicroelectronics. IC REG LINEAR 3V 1.2A SOT223. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case TO-261-4, TO-261AA, current - output 1.2A.

Datasheet Request a Quote

In Stock: 25,113

Tiered Pricing USD

1+ $0.5800 —

10+ $0.4090 -29%

25+ $0.3664 -37%

100+ $0.3195 -45%

250+ $0.2970 -49%

500+ $0.2835 -51%

1,000+ $0.2723 -53% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	18V
Voltage - Output (Min/Fixed)	3V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.6V @ 1.2A
Current - Output	1.2A

Current - Quiescent (Iq)	500 µA
Current - Supply (Max)	-
PSRR	87dB ~ 65dB (120Hz ~ 100kHz)
Control Features	-
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-261-4, TO-261AA
Supplier Device Package	SOT-223
