Name: LD59100PUR
Brand: STMicroelectronics
SKU: LD59100PUR
Price: 0.85 USD
Availability: InStock

REF: LD59100PUR STMicroelectronics

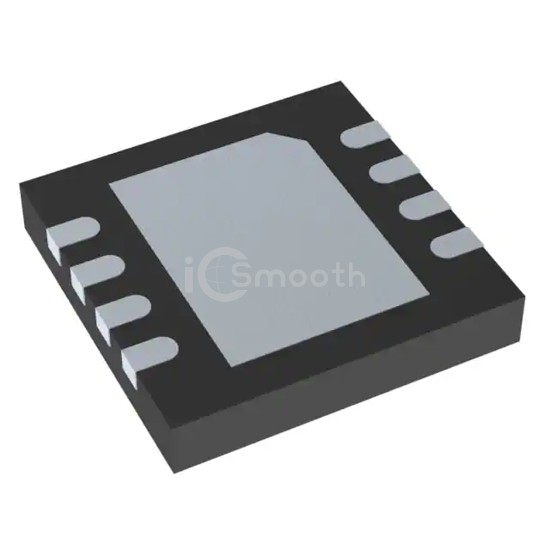

LD59100PUR

IC REG LINEAR POS ADJ 1A 8DFN

LD59100PUR is a PMIC - Voltage Regulators - Linear manufactured by STMicroelectronics. IC REG LINEAR POS ADJ 1A 8DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-VFDFN Exposed Pad, current - supply (max) 280 µA.

Datasheet Request a Quote

In Stock: 6,694

Tiered Pricing USD

1+ $0.8500 —

10+ $0.6060 -29%

25+ $0.5456 -36%

100+ $0.4792 -44%

250+ $0.4475 -47%

500+ $0.4284 -50%

1,000+ $0.4127 -51% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.192V
Voltage - Output (Max)	5V
Voltage Dropout (Max)	0.5V @ 1A
Current - Output	1A

Current - Quiescent (Iq)	130 µA
Current - Supply (Max)	280 µA
PSRR	78dB ~ 58dB (100Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Reverse Polarity
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-VFDFN Exposed Pad
Supplier Device Package	8-DFN (3x3)
