Name: LD57100J120R
Brand: STMicroelectronics
SKU: LD57100J120R
Price: 0.54 USD
Availability: InStock

REF: LD57100J120R STMicroelectronics

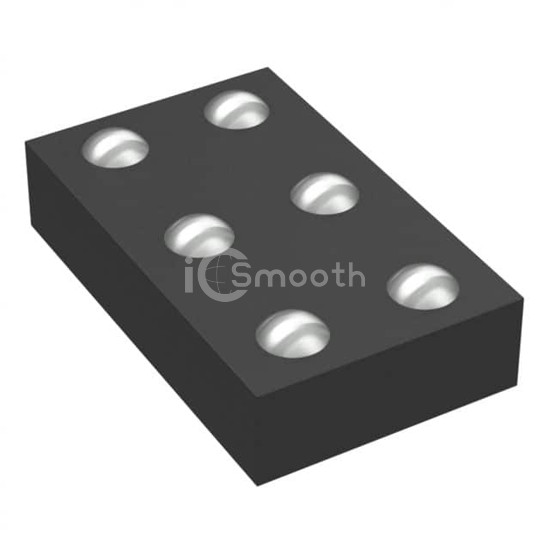

LD57100J120R

STMicroelectronics

1A ULTRA LOW DROPOUT LDO WITH BI

LD57100J120R is a PMIC - Voltage Regulators - Linear manufactured by STMicroelectronics. 1A ULTRA LOW DROPOUT LDO WITH BI. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TJ), package / case 6-XFBGA, FCBGA, current - output 1A.

Datasheet Request a Quote

In Stock: 403

Tiered Pricing USD

1+ $0.5400 —

10+ $0.3800 -30%

25+ $0.3404 -37%

100+ $0.2962 -45%

250+ $0.2752 -49%

500+ $0.2625 -51%

1,000+ $0.2520 -53%

2,500+ $0.2410 -55% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.2V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.08V @ 1A
Current - Output	1A

Current - Quiescent (Iq)	50 µA
Current - Supply (Max)	-
PSRR	75dB (1kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 85°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-XFBGA, FCBGA
Supplier Device Package	6-FlipChip (0.78x1.18)
