Name: LD56100DPU18R
Brand: STMicroelectronics
SKU: LD56100DPU18R
Price: 0.51 USD
Availability: InStock

REF: LD56100DPU18R STMicroelectronics

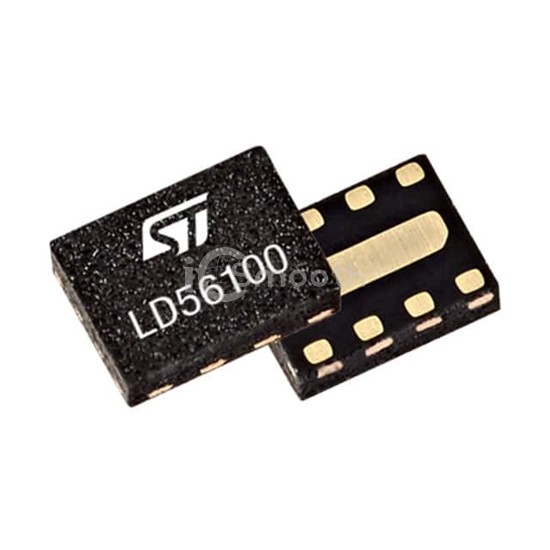

LD56100DPU18R

STMicroelectronics

IC REG LINEAR 1.8V 1A 8DFN

LD56100DPU18R is a PMIC - Voltage Regulators - Linear manufactured by STMicroelectronics. IC REG LINEAR 1.8V 1A 8DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 8-XFDFN Exposed Pad, current - output 1A.

Datasheet Request a Quote

In Stock: 1,114

Tiered Pricing USD

1+ $0.5100 —

10+ $0.3570 -30%

25+ $0.3192 -37%

100+ $0.2775 -46%

250+ $0.2576 -49%

500+ $0.2456 -52%

1,000+ $0.2357 -54% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.8V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.285V @ 1A
Current - Output	1A

Current - Quiescent (Iq)	155 µA
Current - Supply (Max)	-
PSRR	70dB ~ 55dB (1kHz ~ 100kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-XFDFN Exposed Pad
Supplier Device Package	8-DFN (1.6x1.2)
