Name: LD3980PU135R
Brand: STMicroelectronics
SKU: LD3980PU135R
Price: 0.89 USD
Availability: InStock

REF: LD3980PU135R STMicroelectronics

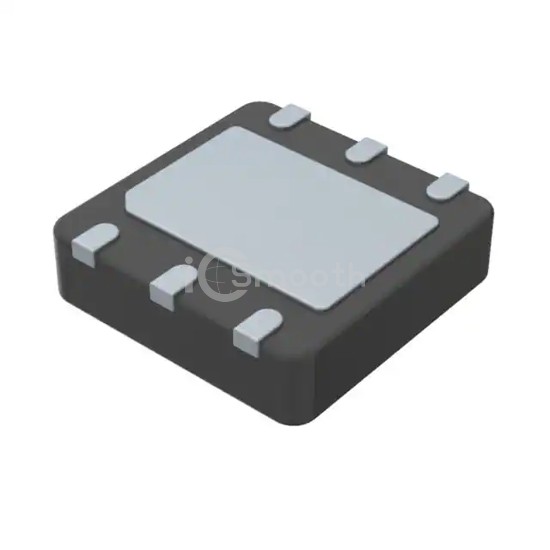

LD3980PU135R

STMicroelectronics

IC REG LINEAR 1.35V 300MA 6DFN

LD3980PU135R is a PMIC - Voltage Regulators - Linear manufactured by STMicroelectronics. IC REG LINEAR 1.35V 300MA 6DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 6-VDFN Exposed Pad, current - supply (max) 130 µA.

Datasheet Request a Quote

In Stock: 5,764

Tiered Pricing USD

3,000+ $0.8865 —

6,000+ $0.8680 -2%

9,000+ $0.8588 -3% BEST

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	3.6V
Voltage - Output (Min/Fixed)	1.35V
Voltage - Output (Max)	-
Voltage Dropout (Max)	-
Current - Output	300mA

Current - Quiescent (Iq)	110 µA
Current - Supply (Max)	130 µA
PSRR	60dB ~ 58dB (1kHz ~ 10kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	6-VDFN Exposed Pad
Supplier Device Package	6-DFN (3x3)
