Name: L9942XP1TR
Brand: STMicroelectronics
SKU: L9942XP1TR
Price: 4.82 USD
Availability: InStock

REF: L9942XP1TR STMicroelectronics

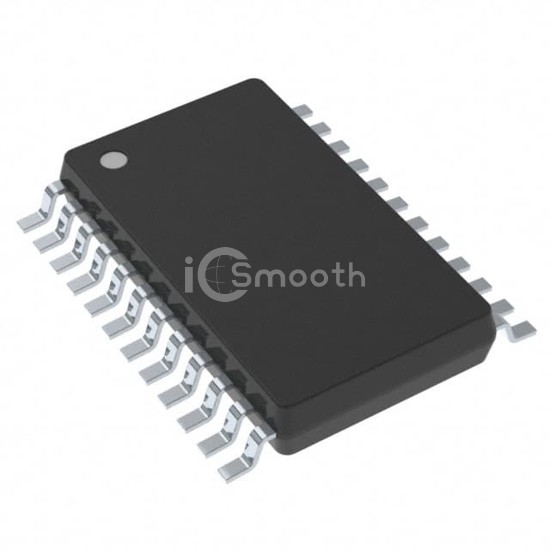

L9942XP1TR

IC MTR DRV BIPLR 3-5.3V 24PWRSSO

L9942XP1TR is a PMIC - Motor Drivers, Controllers manufactured by STMicroelectronics. IC MTR DRV BIPLR 3-5.3V 24PWRSSO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 3V ~ 5.3V, package / case 24-PowerBSOP (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 1,459

Tiered Pricing USD

1+ $4.8200 —

10+ $3.6640 -24%

25+ $3.3760 -30%

100+ $3.0597 -37%

250+ $2.9088 -40%

500+ $2.8179 -42% BEST

Specifications

16 parameters

Product Status	Active
Motor Type - Stepper	Bipolar
Motor Type - AC, DC	-
Function	Driver - Fully Integrated, Control and Power Stage
Output Configuration	Half Bridge (4)
Interface	SPI
Technology	DMOS
Step Resolution	1, 1/2, 1/8, 1/16, 1/32

Applications	Automotive
Current - Output	1.3A
Voltage - Supply	3V ~ 5.3V
Voltage - Load	7V ~ 20V
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	24-PowerBSOP (0.295", 7.50mm Width)
Supplier Device Package	PowerSSO-24
