L7805T

In Stock: 9,077
L7805T - STMicroelectronics - PMIC - Voltage Regulators - Linear
REF: L7805T STMicroelectronics
L7805T

STMicroelectronics

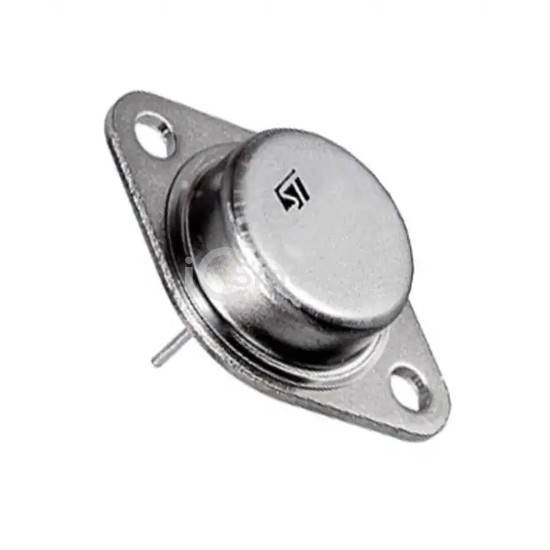

IC REG LINEAR 5V 1.5A TO3

L7805T is a PMIC - Voltage Regulators - Linear manufactured by STMicroelectronics. IC REG LINEAR 5V 1.5A TO3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C, package / case TO-204AA, TO-3, current - output 1.5A.

Datasheet Request a Quote

In Stock: 9,077

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)35V
Voltage - Output (Min/Fixed)5V
Voltage - Output (Max)-
Voltage Dropout (Max)2V @ 1A (Typ)
Current - Output1.5A
Current - Quiescent (Iq)8 mA
Current - Supply (Max)-
PSRR62dB (120Hz)
Control Features-
Protection FeaturesOver Temperature, Short Circuit
Operating Temperature-55°C ~ 150°C
Mounting TypeThrough Hole
Package / CaseTO-204AA, TO-3
Supplier Device PackageTO-3
