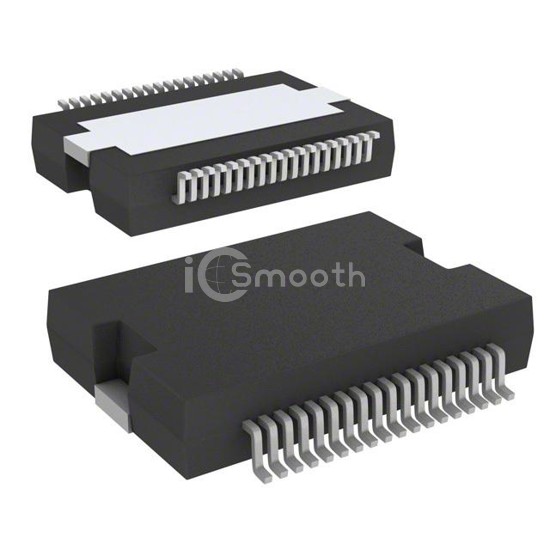

Name: L6472PDTR
Brand: STMicroelectronics
SKU: L6472PDTR
Price: 10.61 USD
Availability: InStock

REF: L6472PDTR STMicroelectronics

L6472PDTR

IC MTR DRV BIPLR 3.3V/5V 36PWRSO

L6472PDTR is a PMIC - Motor Drivers, Controllers manufactured by STMicroelectronics. IC MTR DRV BIPLR 3.3V/5V 36PWRSO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 3.3V, 5V, package / case 36-BSSOP (0.433", 11.00mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 7,847

Tiered Pricing USD

1+ $10.6100 —

10+ $8.2940 -22%

25+ $7.7152 -27%

100+ $7.0790 -33%

250+ $6.7758 -36% BEST

Specifications

16 parameters

Product Status	Active
Motor Type - Stepper	Bipolar
Motor Type - AC, DC	-
Function	Driver - Fully Integrated, Control and Power Stage
Output Configuration	Half Bridge (4)
Interface	SPI
Technology	DMOS
Step Resolution	1 ~ 1/16

Applications	General Purpose
Current - Output	3A
Voltage - Supply	3.3V, 5V
Voltage - Load	8V ~ 45V
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	36-BSSOP (0.433", 11.00mm Width) Exposed Pad
Supplier Device Package	PowerSO-36
