Name: L6472HTR
Brand: STMicroelectronics
SKU: L6472HTR
Price: 5.59 USD
Availability: InStock

REF: L6472HTR STMicroelectronics

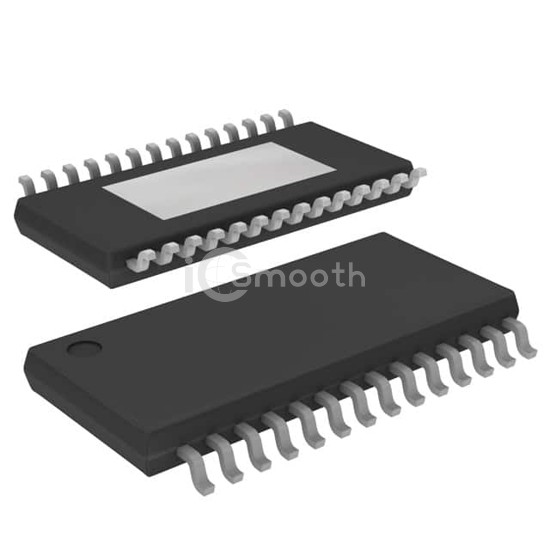

L6472HTR

IC MTR DRV BIPLR 3.3/5V 28HTSSOP

L6472HTR is a PMIC - Motor Drivers, Controllers manufactured by STMicroelectronics. IC MTR DRV BIPLR 3.3/5V 28HTSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 3.3V, 5V, package / case 28-TSSOP (0.173", 4.40mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 7,756

Tiered Pricing USD

1+ $5.5900 —

10+ $4.2730 -24%

25+ $3.9448 -29%

100+ $3.5837 -36%

250+ $3.4115 -39%

500+ $3.3078 -41%

1,000+ $3.2223 -42% BEST

Specifications

16 parameters

Product Status	Active
Motor Type - Stepper	Bipolar
Motor Type - AC, DC	-
Function	Driver - Fully Integrated, Control and Power Stage
Output Configuration	Half Bridge (4)
Interface	SPI
Technology	DMOS
Step Resolution	1 ~ 1/16

Applications	General Purpose
Current - Output	3A
Voltage - Supply	3.3V, 5V
Voltage - Load	8V ~ 45V
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	28-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package	28-HTSSOP
