Name: L6470PD
Brand: STMicroelectronics
SKU: L6470PD
Price: 17.51 USD
Availability: InStock

REF: L6470PD STMicroelectronics

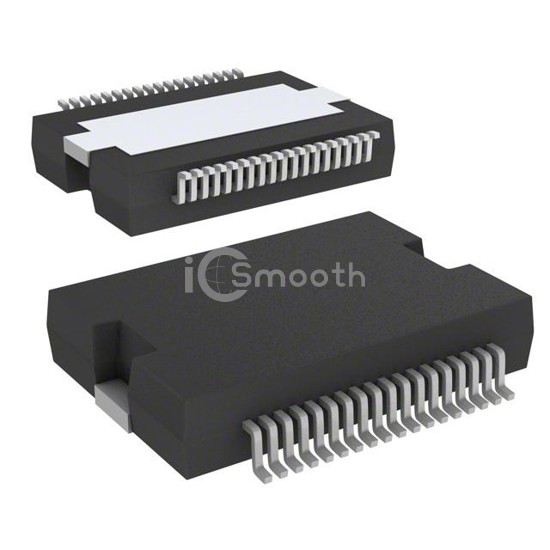

L6470PD

IC MOTOR DRIVER BIPLR 36POWERSSO

L6470PD is a PMIC - Motor Drivers, Controllers manufactured by STMicroelectronics. IC MOTOR DRIVER BIPLR 36POWERSSO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 3.3V, 5V, package / case 36-BSSOP (0.433", 11.00mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 7,344

Tiered Pricing USD

1+ $17.5100 —

10+ $13.9140 -21%

31+ $12.8365 -27%

124+ $11.9071 -32%

279+ $11.5094 -34%

527+ $11.2552 -36% BEST

Specifications

16 parameters

Product Status	Active
Motor Type - Stepper	Bipolar
Motor Type - AC, DC	-
Function	Driver - Fully Integrated, Control and Power Stage
Output Configuration	Half Bridge (4)
Interface	SPI
Technology	DMOS
Step Resolution	1 ~ 1/128

Applications	General Purpose
Current - Output	3A
Voltage - Supply	3.3V, 5V
Voltage - Load	8V ~ 45V
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	36-BSSOP (0.433", 11.00mm Width) Exposed Pad
Supplier Device Package	PowerSSO-36
