Name: L6470HTR
Brand: STMicroelectronics
SKU: L6470HTR
Price: 6.75 USD
Availability: InStock

REF: L6470HTR STMicroelectronics

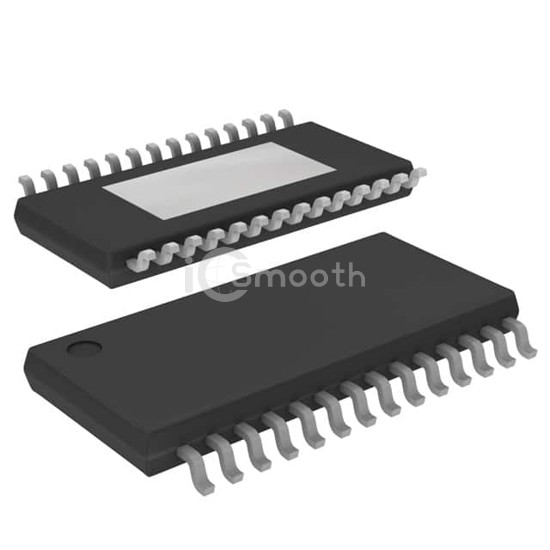

L6470HTR

IC MTR DRV BIPLR 3.3/5V 28HTSSOP

L6470HTR is a PMIC - Motor Drivers, Controllers manufactured by STMicroelectronics. IC MTR DRV BIPLR 3.3/5V 28HTSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 3.3V, 5V, package / case 28-TSSOP (0.173", 4.40mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 6,308

Tiered Pricing USD

1+ $6.7500 —

10+ $5.1950 -23%

25+ $4.8068 -29%

100+ $4.3801 -35%

250+ $4.1766 -38%

500+ $4.0539 -40%

1,000+ $3.9530 -41% BEST

Specifications

16 parameters

Product Status	Active
Motor Type - Stepper	Bipolar
Motor Type - AC, DC	-
Function	Driver - Fully Integrated, Control and Power Stage
Output Configuration	Half Bridge (4)
Interface	SPI
Technology	DMOS
Step Resolution	1 ~ 1/128

Applications	General Purpose
Current - Output	3A
Voltage - Supply	3.3V, 5V
Voltage - Load	8V ~ 45V
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	28-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package	28-HTSSOP
