Name: L6226PD
Brand: STMicroelectronics
SKU: L6226PD
Price: 12.83 USD
Availability: InStock

REF: L6226PD STMicroelectronics

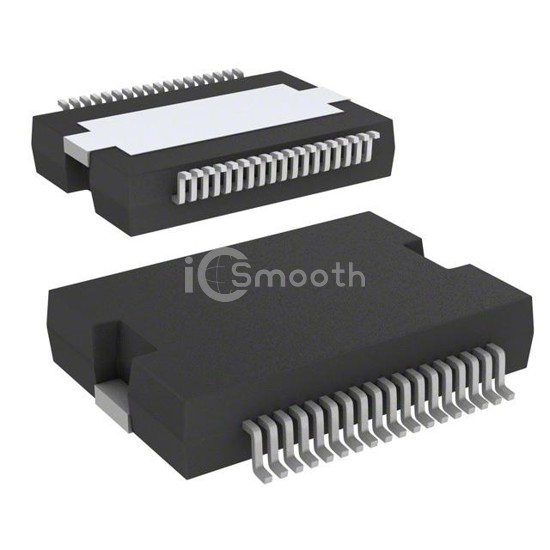

L6226PD

IC MTR DRV BIPOLAR 8-52V 36PWRSO

L6226PD is a PMIC - Motor Drivers, Controllers manufactured by STMicroelectronics. IC MTR DRV BIPOLAR 8-52V 36PWRSO. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 125°C (TJ), voltage - supply 8V ~ 52V, package / case 36-BSSOP (0.433", 11.00mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 3,783

Tiered Pricing USD

1+ $12.8300 —

10+ $10.0910 -21%

31+ $9.2703 -28%

124+ $8.5627 -33%

279+ $8.2600 -36%

527+ $8.0664 -37%

1,023+ $7.8981 -38% BEST

Specifications

16 parameters

Product Status	Active
Motor Type - Stepper	Bipolar
Motor Type - AC, DC	Brushed DC
Function	Driver - Fully Integrated, Control and Power Stage
Output Configuration	Half Bridge (4)
Interface	Parallel
Technology	BiCDMOS
Step Resolution	-

Applications	General Purpose
Current - Output	4A
Voltage - Supply	8V ~ 52V
Voltage - Load	8V ~ 52V
Operating Temperature	-25°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	36-BSSOP (0.433", 11.00mm Width) Exposed Pad
Supplier Device Package	PowerSO-36
