Name: L6206QTR
Brand: STMicroelectronics
SKU: L6206QTR
Price: 3.78 USD
Availability: InStock

REF: L6206QTR STMicroelectronics

L6206QTR

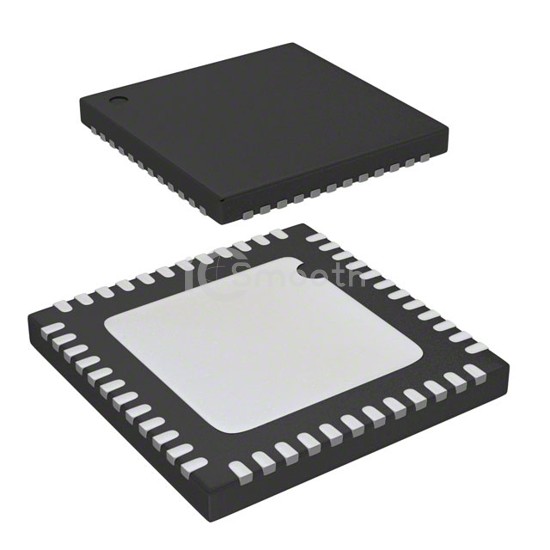

IC MOTOR DRIVER PAR 48QFN

L6206QTR is a PMIC - Full, Half-Bridge Drivers manufactured by STMicroelectronics. IC MOTOR DRIVER PAR 48QFN. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 125°C (TJ), voltage - supply 8V ~ 52V, package / case 48-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 4,562

Tiered Pricing USD

1+ $3.7800 —

10+ $2.8520 -25%

25+ $2.6196 -31%

100+ $2.3645 -37%

250+ $2.2429 -41%

500+ $2.1695 -43%

1,000+ $2.1092 -44% BEST

Specifications

17 parameters

Product Status	Active
Output Configuration	Half Bridge (4)
Applications	DC Motors, Stepper Motors, Voltage Regulators
Interface	Logic
Load Type	Inductive
Technology	BCDMOS
Rds On (Typ)	280mOhm LS, 340mOhm HS
Current - Output / Channel	2.5A
Current - Peak Output	5.6A

Voltage - Supply	8V ~ 52V
Voltage - Load	8V ~ 52V
Operating Temperature	-25°C ~ 125°C (TJ)
Features	Bootstrap Circuit
Fault Protection	Current Limiting, Over Temperature, UVLO
Mounting Type	Surface Mount
Package / Case	48-VFQFN Exposed Pad
Supplier Device Package	48-VFQFPN (7x7)
