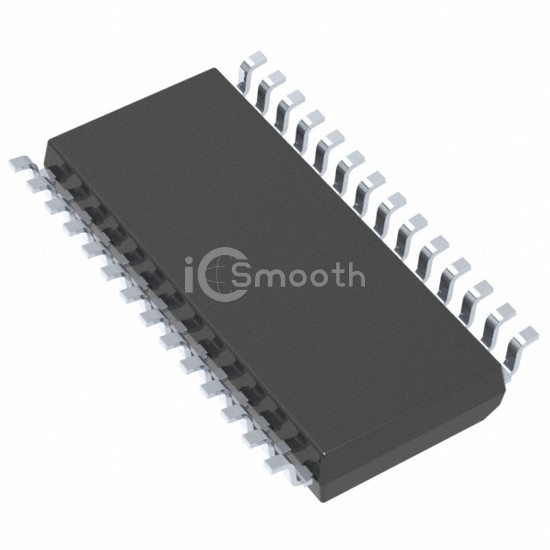

L6204D - STMicroelectronics - PMIC - Full, Half-Bridge Drivers
REF: L6204D STMicroelectronics
L6204D

STMicroelectronics

IC MOTOR DRIVER PAR 28SOIC

L6204D is a PMIC - Full, Half-Bridge Drivers manufactured by STMicroelectronics. IC MOTOR DRIVER PAR 28SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 2V ~ 7V, package / case 28-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 8,147

Specifications

17 parameters
Product StatusObsolete
Output ConfigurationHalf Bridge (4)
ApplicationsDC Motors, General Purpose
InterfaceLogic
Load TypeInductive
TechnologyBCDMOS
Rds On (Typ)1.2Ohm
Current - Output / Channel500mA
Current - Peak Output3A
Voltage - Supply2V ~ 7V
Voltage - Load12V ~ 48V
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesBootstrap Circuit
Fault ProtectionOver Temperature
Mounting TypeSurface Mount
Package / Case28-SOIC (0.295", 7.50mm Width)
Supplier Device Package28-SO
