Name: L5963DN-EHT
Brand: STMicroelectronics
SKU: L5963DN-EHT
Price: 2.74 USD
Availability: InStock

REF: L5963DN-EHT STMicroelectronics

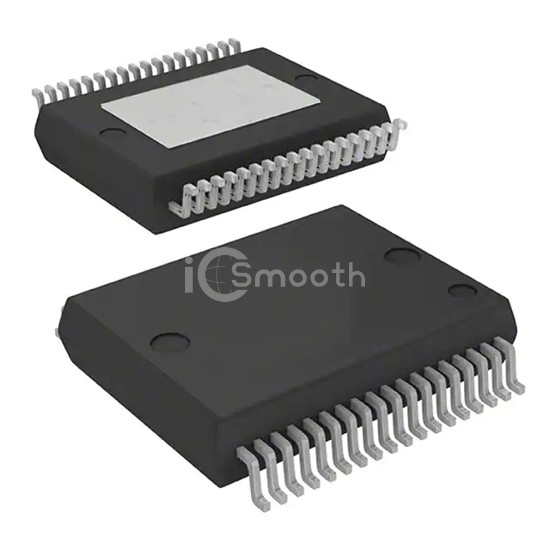

L5963DN-EHT

IC REG TRP BCK/LNR SYNC PWRSSO36

L5963DN-EHT is a PMIC - Voltage Regulators - Linear + Switching manufactured by STMicroelectronics. IC REG TRP BCK/LNR SYNC PWRSSO36. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - supply 3.5V ~ 26V, package / case 36-PowerFSOP (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 1,951

Tiered Pricing USD

1,000+ $2.7361 —

2,000+ $2.6746 -2%

3,000+ $2.6438 -3% BEST

Specifications

15 parameters

Product Status	Active
Topology	Step-Down (Buck) Synchronous (2), Linear (LDO) (1)
Number of Outputs	3
Frequency - Switching	250kHz ~ 2MHz
Voltage/Current - Output 1	Programmable, 2.5A
Voltage/Current - Output 2	Programmable, 3A
Voltage/Current - Output 3	Programmable, 250mA
w/LED Driver	No

w/Supervisor	Yes
w/Sequencer	Yes
Voltage - Supply	3.5V ~ 26V
Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	36-PowerFSOP (0.295", 7.50mm Width)
Supplier Device Package	PowerSSO-36 EPU
