Name: L4909
Brand: STMicroelectronics
SKU: L4909
Price: 1.82 USD
Availability: InStock

REF: L4909 STMicroelectronics

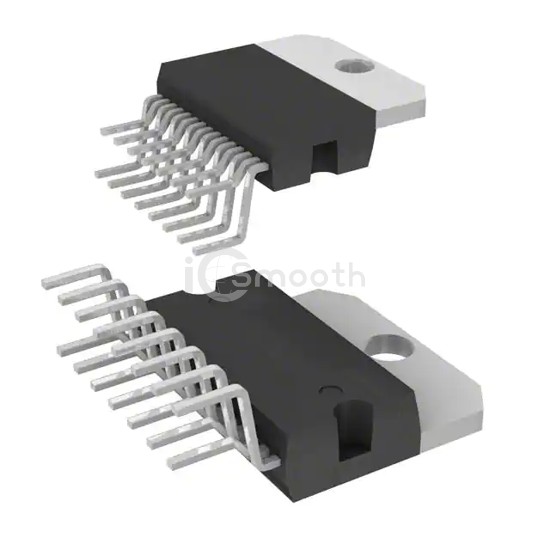

L4909

IC REG LIN POS ADJ 15MULTIWATT

L4909 is a PMIC - Voltage Regulators - Linear manufactured by STMicroelectronics. IC REG LIN POS ADJ 15MULTIWATT. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, package / case Multiwatt-15 (Vertical, Bent and Staggered Leads), current - supply (max) 29 mA.

Datasheet Request a Quote

In Stock: 3,232

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	3
Voltage - Input (Max)	40V
Voltage - Output (Min/Fixed)	5V
Voltage - Output (Max)	12V
Voltage Dropout (Max)	2.2V @ 500mA, 2.2V @ 500mA, 2.2V @ 500mA
Current - Output	1.2A, 1.2A, 1.2A

Current - Quiescent (Iq)	11 mA
Current - Supply (Max)	29 mA
PSRR	60dB (120Hz ~ 1kHz)
Control Features	Enable, Trigger
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	0°C ~ 70°C
Mounting Type	Through Hole
Package / Case	Multiwatt-15 (Vertical, Bent and Staggered Leads)
Supplier Device Package	15-Multiwatt
