Name: L298N
Brand: STMicroelectronics
SKU: L298N
Price: 11.78 USD
Availability: InStock

REF: L298N STMicroelectronics

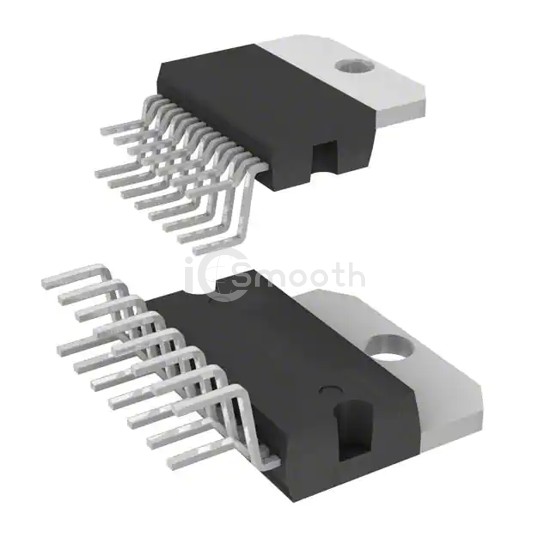

L298N

IC BRIDGE DRIVER PAR 15MULTIWATT

L298N is a PMIC - Full, Half-Bridge Drivers manufactured by STMicroelectronics. IC BRIDGE DRIVER PAR 15MULTIWATT. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 7V, package / case Multiwatt-15 (Vertical, Bent and Staggered Leads).

Datasheet Request a Quote

In Stock: 5,501

Tiered Pricing USD

1+ $11.7800 —

10+ $9.2410 -22%

25+ $8.6064 -27%

100+ $7.9089 -33%

250+ $7.5764 -36%

500+ $7.3760 -37%

1,000+ $7.2111 -39% BEST

Specifications

17 parameters

Product Status	Active
Output Configuration	Half Bridge (4)
Applications	DC Motors, Relays, Solenoids, Stepper Motors
Interface	Logic
Load Type	Inductive
Technology	Bipolar
Rds On (Typ)	-
Current - Output / Channel	-
Current - Peak Output	2A

Voltage - Supply	4.5V ~ 7V
Voltage - Load	4.8V ~ 46V
Operating Temperature	-40°C ~ 150°C (TJ)
Features	-
Fault Protection	Current Limiting, Over Temperature
Mounting Type	Through Hole
Package / Case	Multiwatt-15 (Vertical, Bent and Staggered Leads)
Supplier Device Package	15-Multiwatt
