Name: L2293Q
Brand: STMicroelectronics
SKU: L2293Q
Price: 7.49 USD
Availability: InStock

REF: L2293Q STMicroelectronics

L2293Q

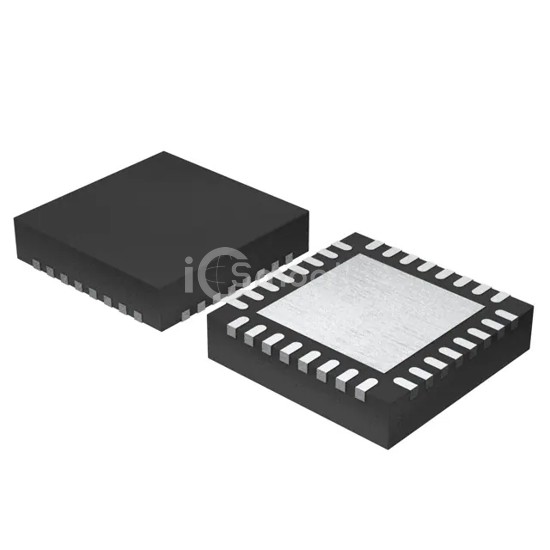

IC BRIDGE DRIVER ON/OFF 32VFQFPN

L2293Q is a PMIC - Full, Half-Bridge Drivers manufactured by STMicroelectronics. IC BRIDGE DRIVER ON/OFF 32VFQFPN. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 125°C (TJ), voltage - supply 2.8V ~ 36V, package / case 32-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,915

Tiered Pricing USD

1+ $7.4900 —

10+ $5.7870 -23%

25+ $5.3612 -28%

100+ $4.8931 -35%

490+ $4.5390 -39%

980+ $4.4277 -41%

1,470+ $4.3720 -42% BEST

Specifications

17 parameters

Product Status	Active
Output Configuration	Half Bridge (4)
Applications	DC Motors, Relays, Solenoids, Stepper Motors
Interface	Logic
Load Type	Inductive
Technology	-
Rds On (Typ)	-
Current - Output / Channel	600mA
Current - Peak Output	1.2A

Voltage - Supply	2.8V ~ 36V
Voltage - Load	2.8V ~ 36V
Operating Temperature	-20°C ~ 125°C (TJ)
Features	-
Fault Protection	Over Temperature
Mounting Type	Surface Mount
Package / Case	32-VFQFN Exposed Pad
Supplier Device Package	32-VFQFPN (5x5)
