Name: HSP051-4N10
Brand: STMicroelectronics
SKU: HSP051-4N10
Price: 0.28 USD
Availability: InStock

REF: HSP051-4N10 STMicroelectronics

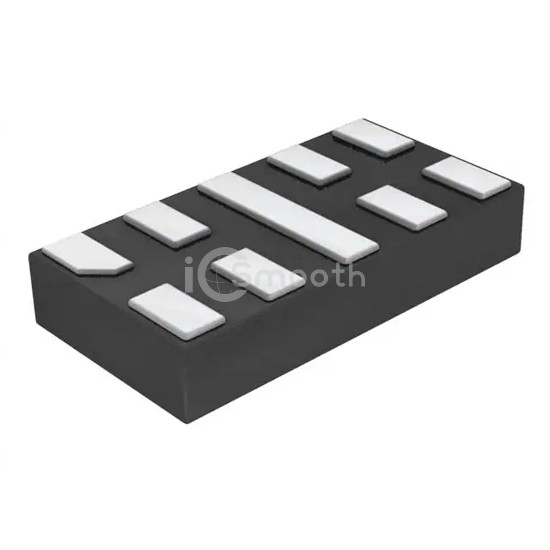

HSP051-4N10

TVS DIODE 3.6VWM 10VC 10UQFN

HSP051-4N10 is a TVS - Diodes manufactured by STMicroelectronics. TVS DIODE 3.6VWM 10VC 10UQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 10-XFDFN.

Datasheet Request a Quote

In Stock: 3,536

Tiered Pricing USD

1+ $0.2800 —

10+ $0.0910 -68%

100+ $0.0700 -75% BEST

Specifications

16 parameters

Product Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	4
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	3.6V
Voltage - Breakdown (Min)	4.5V
Voltage - Clamping (Max) @ Ipp	10V
Current - Peak Pulse (10/1000µs)	1A (8/20µs)

Power - Peak Pulse	-
Power Line Protection	Yes
Applications	HDMI
Capacitance @ Frequency	0.4pF @ 200MHz ~ 2.5GHz
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	10-XFDFN
Supplier Device Package	10-uQFN (1.9x1)
