Name: HSP051-4M5
Brand: STMicroelectronics
SKU: HSP051-4M5
Price: 0.27 USD
Availability: InStock

REF: HSP051-4M5 STMicroelectronics

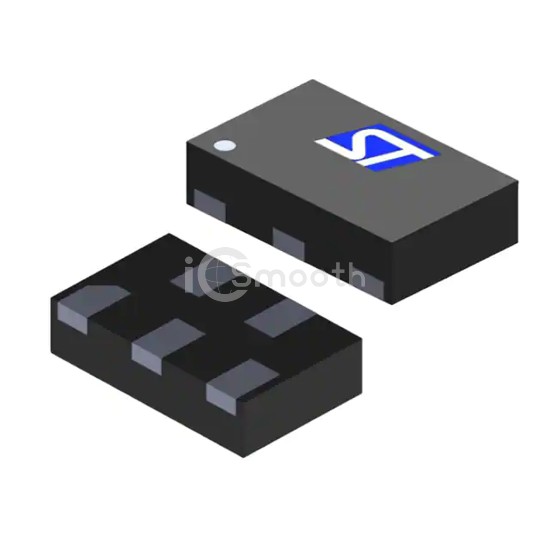

HSP051-4M5

TVS DIODE 5VWM 11.3VC 5UQFN

HSP051-4M5 is a TVS - Diodes manufactured by STMicroelectronics. TVS DIODE 5VWM 11.3VC 5UQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 5-XFDFN.

Datasheet Request a Quote

In Stock: 30,101

Tiered Pricing USD

1+ $0.2700 —

10+ $0.1510 -44%

100+ $0.1040 -61%

500+ $0.0890 -67%

1,000+ $0.0670 -75% BEST

Specifications

16 parameters

Product Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	4
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	5.7V
Voltage - Clamping (Max) @ Ipp	11.3V
Current - Peak Pulse (10/1000µs)	3A (8/20µs)

Power - Peak Pulse	-
Power Line Protection	Yes
Applications	HDMI, USB
Capacitance @ Frequency	0.6pF @ 200MHz ~ 2.5GHz
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	5-XFDFN
Supplier Device Package	5-µQFN (1.3x0.8)
