Name: ESDZL5-1F4
Brand: STMicroelectronics
SKU: ESDZL5-1F4
Price: 0.10 USD
Availability: InStock

REF: ESDZL5-1F4 STMicroelectronics

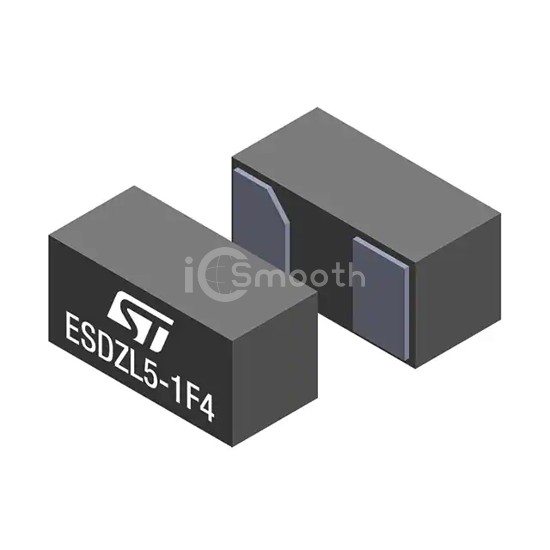

ESDZL5-1F4

TVS DIODE 5.5VWM 10VC 0201

ESDZL5-1F4 is a TVS - Diodes manufactured by STMicroelectronics. TVS DIODE 5.5VWM 10VC 0201. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 0201 (0603 Metric).

Datasheet Request a Quote

In Stock: 68,272

Tiered Pricing USD

1+ $0.1000 —

10+ $0.0590 -41%

100+ $0.0230 -77%

500+ $0.0220 -78%

1,000+ $0.0210 -79%

2,000+ $0.0205 -80%

5,000+ $0.0200 -80% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5.5V (Max)
Voltage - Breakdown (Min)	-
Voltage - Clamping (Max) @ Ipp	10V
Current - Peak Pulse (10/1000µs)	7A (8/20µs)

Power - Peak Pulse	60W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	7.5pF @ 1MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	0201
