Name: ESDA15P60-1U1M
Brand: STMicroelectronics
SKU: ESDA15P60-1U1M
Price: 0.18 USD
Availability: InStock

REF: ESDA15P60-1U1M STMicroelectronics

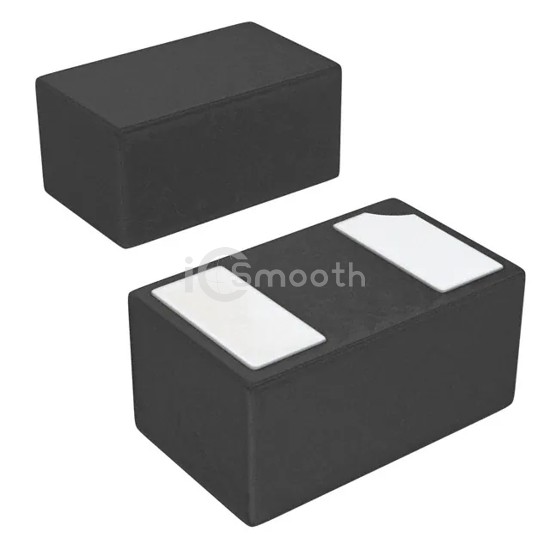

ESDA15P60-1U1M

STMicroelectronics

TVS DIODE 13.2VWM 22.7VC 1610

ESDA15P60-1U1M is a TVS - Diodes manufactured by STMicroelectronics. TVS DIODE 13.2VWM 22.7VC 1610. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 2-UDFN.

Datasheet Request a Quote

In Stock: 1,518

Tiered Pricing USD

1+ $0.1800 —

10+ $0.1480 -18%

100+ $0.1140 -37%

500+ $0.1030 -43%

1,000+ $0.0930 -48% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	13.2V (Max)
Voltage - Breakdown (Min)	13.6V
Voltage - Clamping (Max) @ Ipp	22.7V
Current - Peak Pulse (10/1000µs)	57A (8/20µs)

Power - Peak Pulse	1200W (1.2kW)
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	2-UDFN
Supplier Device Package	1610
