E-L6569D

In Stock: 2,907

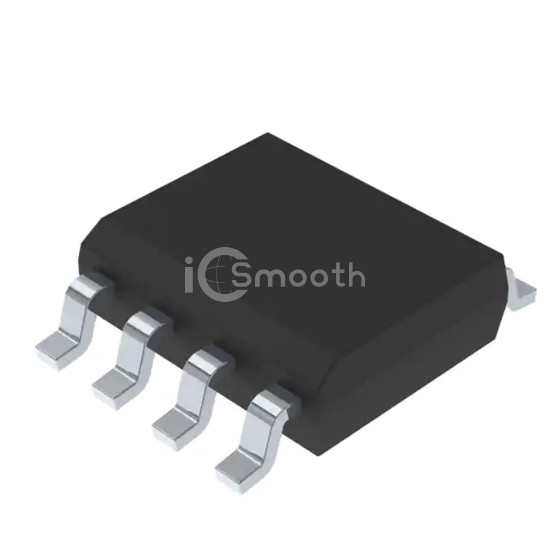

E-L6569D - STMicroelectronics - PMIC - Gate Drivers
REF: E-L6569D STMicroelectronics
E-L6569D

STMicroelectronics

IC GATE DRVR HALF-BRIDGE 8SO

E-L6569D is a PMIC - Gate Drivers manufactured by STMicroelectronics. IC GATE DRVR HALF-BRIDGE 8SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 10V ~ 16.6V, package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 2,907

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationHalf-Bridge
Channel TypeSynchronous
Number of Drivers2
Gate TypeIGBT, N-Channel MOSFET
Voltage - Supply10V ~ 16.6V
Logic Voltage - VIL, VIH-
Current - Peak Output (Source, Sink)170mA, 270mA
Input TypeRC Input Circuit
High Side Voltage - Max (Bootstrap)600 V
Rise / Fall Time (Typ)-
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SOIC
