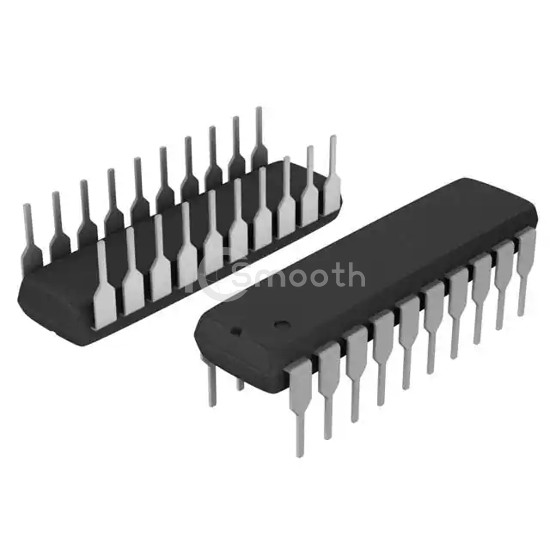

E-L6204 - STMicroelectronics - PMIC - Full, Half-Bridge Drivers
REF: E-L6204 STMicroelectronics
E-L6204

STMicroelectronics

IC BRIDGE DRIVER PAR 20POWERDIP

E-L6204 is a PMIC - Full, Half-Bridge Drivers manufactured by STMicroelectronics. IC BRIDGE DRIVER PAR 20POWERDIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply 2V ~ 7V, package / case 20-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 4,156

Specifications

17 parameters
Product StatusObsolete
Output ConfigurationHalf Bridge (4)
ApplicationsDC Motors, General Purpose
InterfaceLogic
Load TypeInductive
TechnologyBCDMOS
Rds On (Typ)1.2Ohm
Current - Output / Channel500mA
Current - Peak Output3A
Voltage - Supply2V ~ 7V
Voltage - Load12V ~ 48V
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesBootstrap Circuit
Fault ProtectionOver Temperature
Mounting TypeThrough Hole
Package / Case20-DIP (0.300", 7.62mm)
Supplier Device Package20-PowerDIP
