Name: BTW69-1200RG
Brand: STMicroelectronics
SKU: BTW69-1200RG
Price: 6.58 USD
Availability: InStock

REF: BTW69-1200RG STMicroelectronics

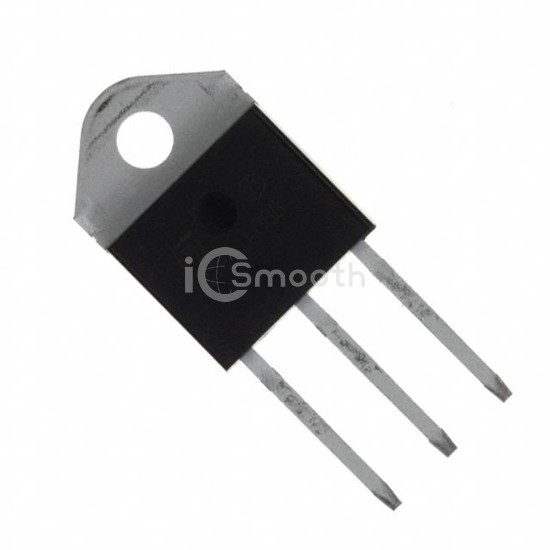

BTW69-1200RG

STMicroelectronics

SCR 1.2KV 50A TOP3

BTW69-1200RG is a Thyristors - SCRs manufactured by STMicroelectronics. SCR 1.2KV 50A TOP3. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TOP-3.

Datasheet Request a Quote

In Stock: 2,974

Tiered Pricing USD

1+ $6.5800 —

30+ $3.7627 -43%

120+ $3.1420 -52%

510+ $2.6871 -59%

1,020+ $2.6469 -60% BEST

Specifications

15 parameters

Product Status	Active
Voltage - Off State	1.2 kV
Voltage - Gate Trigger (Vgt) (Max)	1.3 V
Current - Gate Trigger (Igt) (Max)	80 mA
Voltage - On State (Vtm) (Max)	1.9 V
Current - On State (It (AV)) (Max)	32 A
Current - On State (It (RMS)) (Max)	50 A
Current - Hold (Ih) (Max)	150 mA

Current - Off State (Max)	10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	580A, 610A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole
Package / Case	TOP-3
Supplier Device Package	TOP3
