Name: BTW69-1200N
Brand: STMicroelectronics
SKU: BTW69-1200N
Price: 8.06 USD
Availability: InStock

REF: BTW69-1200N STMicroelectronics

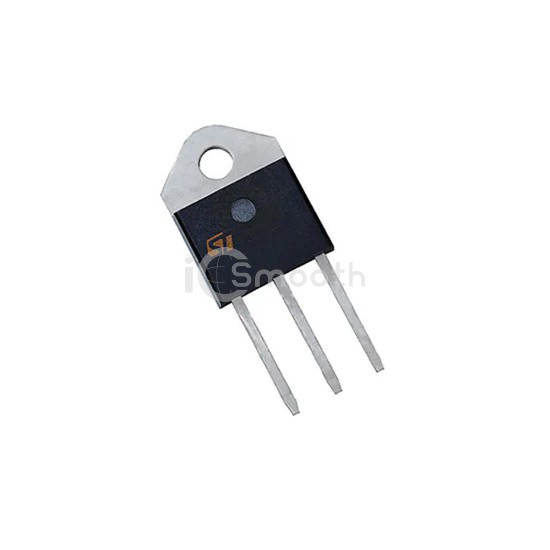

BTW69-1200N

SCR 1.2KV 50A TOP3

BTW69-1200N is a Thyristors - SCRs manufactured by STMicroelectronics. SCR 1.2KV 50A TOP3. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TOP-3.

Datasheet Request a Quote

In Stock: 5,308

Tiered Pricing USD

1+ $8.0600 —

30+ $4.6857 -42%

120+ $3.9432 -51%

510+ $3.4650 -57% BEST

Specifications

15 parameters

Product Status	Active
Voltage - Off State	1.2 kV
Voltage - Gate Trigger (Vgt) (Max)	1.3 V
Current - Gate Trigger (Igt) (Max)	50 mA
Voltage - On State (Vtm) (Max)	1.6 V
Current - On State (It (AV)) (Max)	31 A
Current - On State (It (RMS)) (Max)	50 A
Current - Hold (Ih) (Max)	100 mA

Current - Off State (Max)	10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	700A, 763A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole
Package / Case	TOP-3
Supplier Device Package	TOP3
