BTW68-1000RG

In Stock: 8,766
BTW68-1000RG - STMicroelectronics - Thyristors - SCRs
REF: BTW68-1000RG STMicroelectronics

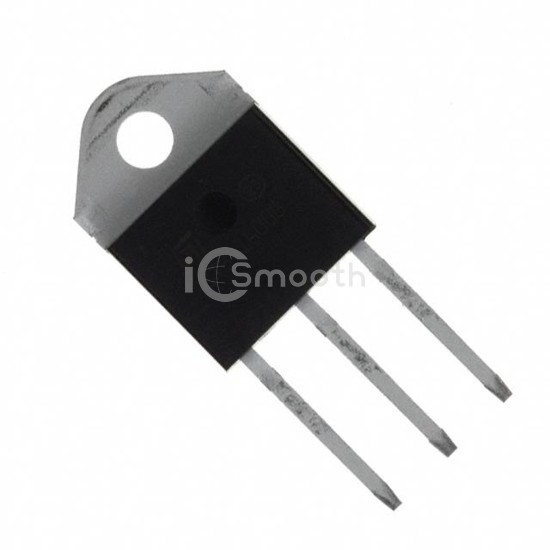

BTW68-1000RG

STMicroelectronics

SCR 1KV 30A TOP3

BTW68-1000RG is a Thyristors - SCRs manufactured by STMicroelectronics. SCR 1KV 30A TOP3. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TOP-3.

Datasheet Request a Quote

In Stock: 8,766

Specifications

15 parameters
Product StatusObsolete
Voltage - Off State1 kV
Voltage - Gate Trigger (Vgt) (Max)1.5 V
Current - Gate Trigger (Igt) (Max)50 mA
Voltage - On State (Vtm) (Max)2.1 V
Current - On State (It (AV)) (Max)19 A
Current - On State (It (RMS)) (Max)30 A
Current - Hold (Ih) (Max)75 mA
Current - Off State (Max)20 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)400A, 420A
SCR TypeStandard Recovery
Operating Temperature-40°C ~ 125°C
Mounting TypeThrough Hole
Package / CaseTOP-3
Supplier Device PackageTOP3
