Name: BTW67-600
Brand: STMicroelectronics
SKU: BTW67-600
Price: 4.57 USD
Availability: InStock

REF: BTW67-600 STMicroelectronics

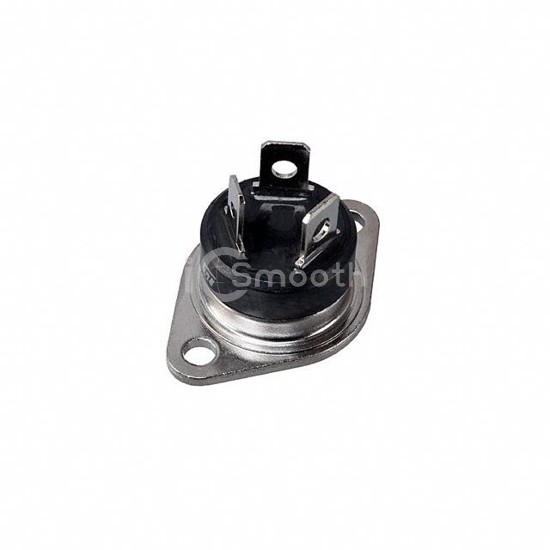

BTW67-600

SCR 600V 50A RD91

BTW67-600 is a Thyristors - SCRs manufactured by STMicroelectronics. SCR 600V 50A RD91. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C, package / case RD-91.

Datasheet Request a Quote

In Stock: 1,441

Specifications

15 parameters

Product Status	Obsolete
Voltage - Off State	600 V
Voltage - Gate Trigger (Vgt) (Max)	1.3 V
Current - Gate Trigger (Igt) (Max)	80 mA
Voltage - On State (Vtm) (Max)	1.9 V
Current - On State (It (AV)) (Max)	32 A
Current - On State (It (RMS)) (Max)	50 A
Current - Hold (Ih) (Max)	150 mA

Current - Off State (Max)	10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	580A, 610A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Chassis Mount
Package / Case	RD-91
Supplier Device Package	RD91
