Name: BTW67-1000
Brand: STMicroelectronics
SKU: BTW67-1000
Price: 8.92 USD
Availability: InStock

REF: BTW67-1000 STMicroelectronics

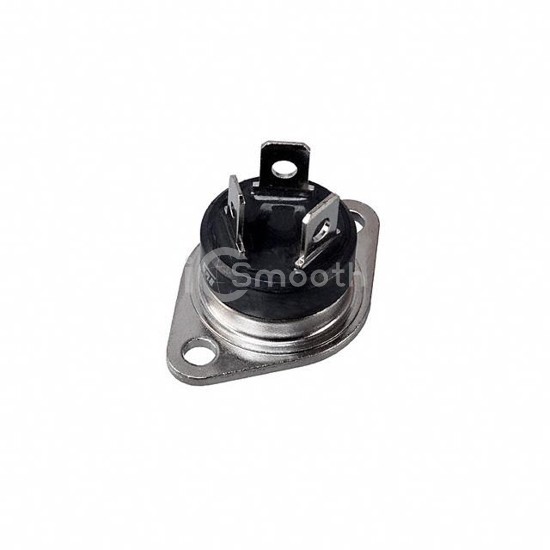

BTW67-1000

SCR 1KV 50A RD91

BTW67-1000 is a Thyristors - SCRs manufactured by STMicroelectronics. SCR 1KV 50A RD91. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C, package / case RD-91.

Datasheet Request a Quote

In Stock: 1,581

Tiered Pricing USD

1+ $8.9200 —

25+ $5.3568 -40%

100+ $4.5079 -49%

500+ $3.9600 -56% BEST

Specifications

15 parameters

Product Status	Active
Voltage - Off State	1 kV
Voltage - Gate Trigger (Vgt) (Max)	1.3 V
Current - Gate Trigger (Igt) (Max)	80 mA
Voltage - On State (Vtm) (Max)	1.9 V
Current - On State (It (AV)) (Max)	32 A
Current - On State (It (RMS)) (Max)	50 A
Current - Hold (Ih) (Max)	150 mA

Current - Off State (Max)	10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	580A, 610A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Chassis Mount
Package / Case	RD-91
Supplier Device Package	RD91
