Name: A1P50S65M2
Brand: STMicroelectronics
SKU: A1P50S65M2
Price: 50.28 USD
Availability: InStock

REF: A1P50S65M2 STMicroelectronics

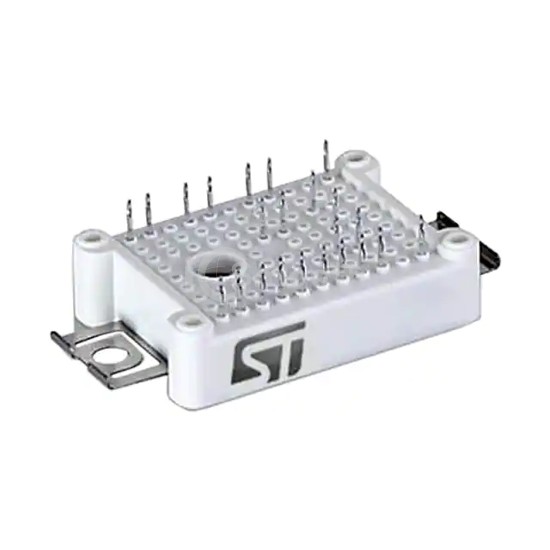

A1P50S65M2

IGBT MOD 650V 50A 208W ACEPACK1

A1P50S65M2 is a Transistors - IGBTs - Modules manufactured by STMicroelectronics. IGBT MOD 650V 50A 208W ACEPACK1. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, current - collector (ic) (max) 50 A.

Datasheet Request a Quote

In Stock: 1,790

Specifications

15 parameters

Product Status	Active
IGBT Type	Trench Field Stop
Configuration	Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max)	650 V
Current - Collector (Ic) (Max)	50 A
Power - Max	208 W
Vce(on) (Max) @ Vge, Ic	2.3V @ 15V, 50A
Current - Collector Cutoff (Max)	100 µA

Input Capacitance (Cies) @ Vce	4.15 nF @ 25 V
Input	Standard
NTC Thermistor	Yes
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	ACEPACK™ 1
