Name: A1C15S12M3
Brand: STMicroelectronics
SKU: A1C15S12M3
Price: 52.80 USD
Availability: InStock

REF: A1C15S12M3 STMicroelectronics

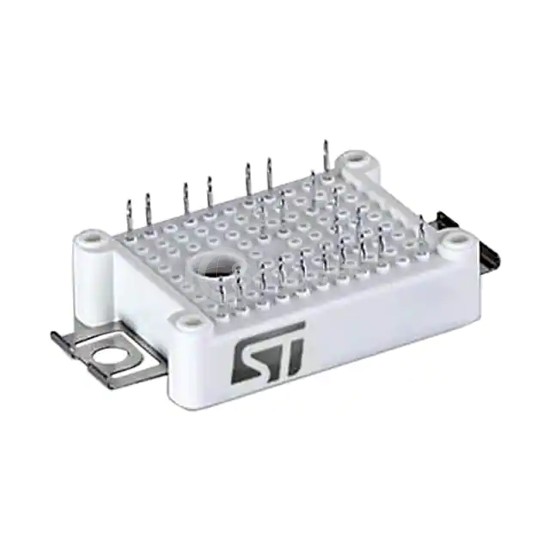

A1C15S12M3

IGBT MOD 1200V 15A ACEPACK1

A1C15S12M3 is a Transistors - IGBTs - Modules manufactured by STMicroelectronics. IGBT MOD 1200V 15A ACEPACK1. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, current - collector (ic) (max) 15 A.

Request a Quote

In Stock: 7,182

Specifications

15 parameters

Product Status	Active
IGBT Type	Trench Field Stop
Configuration	Three Phase Inverter with Brake
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	15 A
Power - Max	142.8 W
Vce(on) (Max) @ Vge, Ic	2.45V @ 15V, 15A
Current - Collector Cutoff (Max)	100 µA

Input Capacitance (Cies) @ Vce	985 pF @ 25 V
Input	Three Phase Bridge Rectifier
NTC Thermistor	Yes
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	ACEPACK™ 1
