74LX1G04BJR

In Stock: 12,606

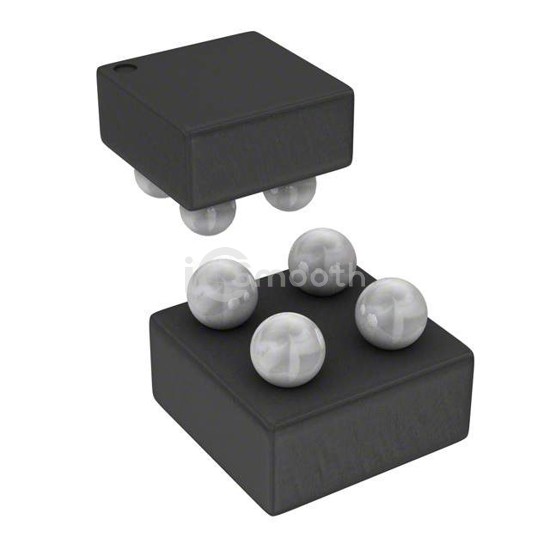

74LX1G04BJR - STMicroelectronics - Logic - Gates and Inverters
REF: 74LX1G04BJR STMicroelectronics
74LX1G04BJR

STMicroelectronics

IC INVERTER 1CH 1-INP 4FLIPCHIP

74LX1G04BJR is a Logic - Gates and Inverters manufactured by STMicroelectronics. IC INVERTER 1CH 1-INP 4FLIPCHIP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 4-WFBGA, FCBGA.

Datasheet Request a Quote

In Stock: 12,606

Specifications

15 parameters
Product StatusObsolete
Logic TypeInverter
Number of Circuits1
Number of Inputs1
Features-
Voltage - Supply1.65V ~ 5.5V
Current - Quiescent (Max)10 µA
Current - Output High, Low32mA, 32mA
Logic Level - Low-
Logic Level - High-
Max Propagation Delay @ V, Max CL4.2ns @ 5V, 50pF
Operating Temperature-55°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package4-FlipChip (1.07x1.07)
Package / Case4-WFBGA, FCBGA
