Name: 1.5KE22ARL
Brand: STMicroelectronics
SKU: 1.5KE22ARL
Price: 0.23 USD
Availability: InStock

REF: 1.5KE22ARL STMicroelectronics

1.5KE22ARL

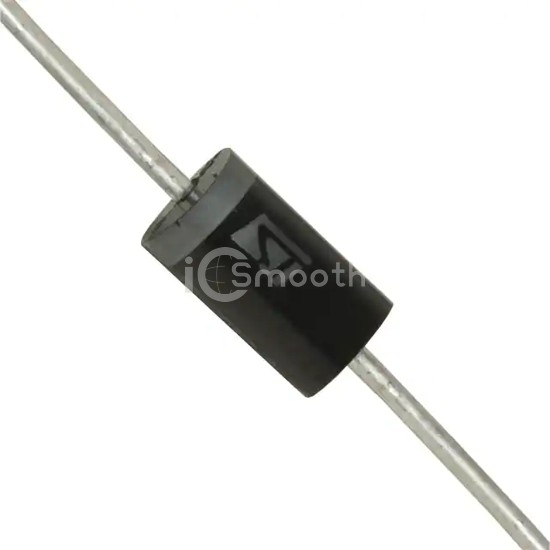

TVS DIODE 18.8VWM 39.3VC DO201

1.5KE22ARL is a TVS - Diodes manufactured by STMicroelectronics. TVS DIODE 18.8VWM 39.3VC DO201. Key specifications: mounting type Through Hole, package / case DO-201AA, DO-27, Axial.

Datasheet Request a Quote

In Stock: 1,461

Tiered Pricing USD

3,800+ $0.2319 —

5,700+ $0.2211 -5%

9,500+ $0.2090 -10%

13,300+ $0.2019 -13%

19,000+ $0.1949 -16%

47,500+ $0.1939 -16% BEST

Specifications

16 parameters

Product Status	Obsolete
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	18.8V
Voltage - Breakdown (Min)	20.9V
Voltage - Clamping (Max) @ Ipp	39.3V
Current - Peak Pulse (10/1000µs)	254A (8/20µs)

Power - Peak Pulse	1500W (1.5kW)
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	3700pF @ 1MHz
Operating Temperature	-
Mounting Type	Through Hole
Package / Case	DO-201AA, DO-27, Axial
Supplier Device Package	DO-201
