MJ15022

In Stock: 4,983

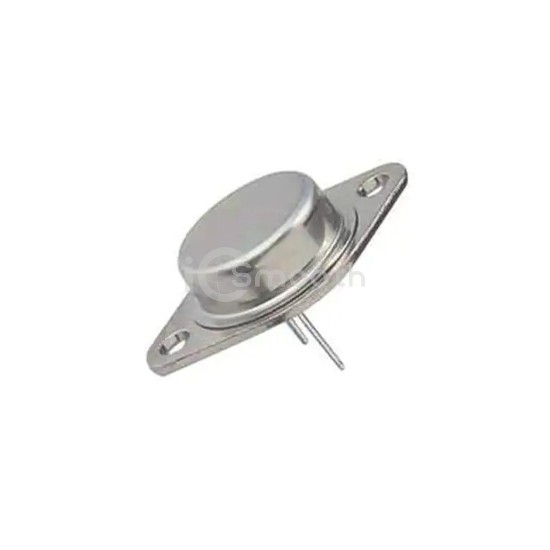

MJ15022 - Solid State Inc. - Transistors - Bipolar (BJT) - Single
REF: MJ15022 Solid State Inc.
MJ15022

Solid State Inc.

TRANS NPN 200V 16A TO3

MJ15022 is a Transistors - Bipolar (BJT) - Single manufactured by Solid State Inc.. TRANS NPN 200V 16A TO3. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-204AA, TO-3, current - collector (ic) (max) 16 A.

Datasheet Request a Quote

In Stock: 4,983

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)16 A
Voltage - Collector Emitter Breakdown (Max)200 V
Vce Saturation (Max) @ Ib, Ic4V @ 3.2A, 16A
Current - Collector Cutoff (Max)500µA
DC Current Gain (hFE) (Min) @ Ic, Vce15 @ 8A, 4V
Power - Max250 W
Frequency - Transition4MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-204AA, TO-3
Supplier Device PackageTO-3
