MJ10024

In Stock: 360

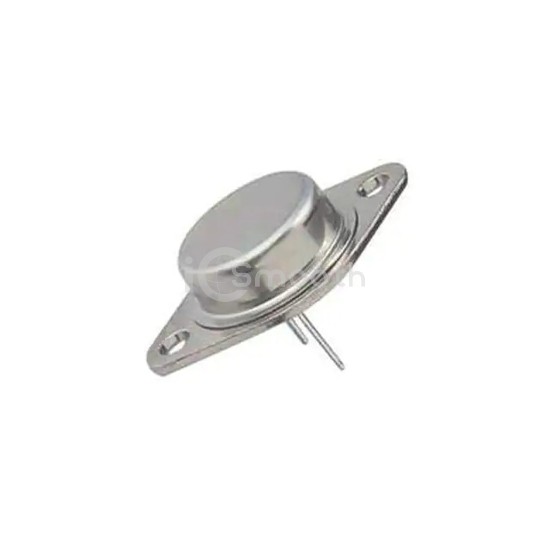

MJ10024 - Solid State Inc. - Transistors - Bipolar (BJT) - Single
REF: MJ10024 Solid State Inc.
MJ10024

Solid State Inc.

TRANS NPN DARL 750V 20A TO3

MJ10024 is a Transistors - Bipolar (BJT) - Single manufactured by Solid State Inc.. TRANS NPN DARL 750V 20A TO3. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 200°C (TJ), package / case TO-204AA, TO-3, current - collector (ic) (max) 20 A.

Datasheet Request a Quote

In Stock: 360

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN - Darlington
Current - Collector (Ic) (Max)20 A
Voltage - Collector Emitter Breakdown (Max)750 V
Vce Saturation (Max) @ Ib, Ic5V @ 5A, 20A
Current - Collector Cutoff (Max)250µA
DC Current Gain (hFE) (Min) @ Ic, Vce50 @ 5A, 5V
Power - Max250 W
Frequency - Transition-
Operating Temperature-65°C ~ 200°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-204AA, TO-3
Supplier Device PackageTO-3
