MJ10022

In Stock: 1,916

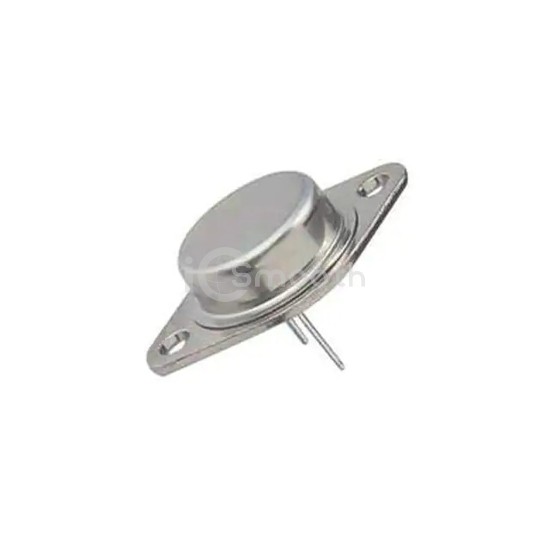

MJ10022 - Solid State Inc. - Transistors - Bipolar (BJT) - Single
REF: MJ10022 Solid State Inc.
MJ10022

Solid State Inc.

TRANS NPN DARL 350V 40A TO3

MJ10022 is a Transistors - Bipolar (BJT) - Single manufactured by Solid State Inc.. TRANS NPN DARL 350V 40A TO3. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 200°C (TJ), package / case TO-204AA, TO-3, current - collector (ic) (max) 40 A.

Datasheet Request a Quote

In Stock: 1,916

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN - Darlington
Current - Collector (Ic) (Max)40 A
Voltage - Collector Emitter Breakdown (Max)350 V
Vce Saturation (Max) @ Ib, Ic5V @ 5A, 40A
Current - Collector Cutoff (Max)250µA
DC Current Gain (hFE) (Min) @ Ic, Vce60 @ 10A, 5V
Power - Max250 W
Frequency - Transition-
Operating Temperature-65°C ~ 200°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-204AA, TO-3
Supplier Device PackageTO-3
