Name: C137P
Brand: Solid State Inc.
SKU: C137P
Price: 7.95 USD
Availability: InStock

REF: C137P Solid State Inc.

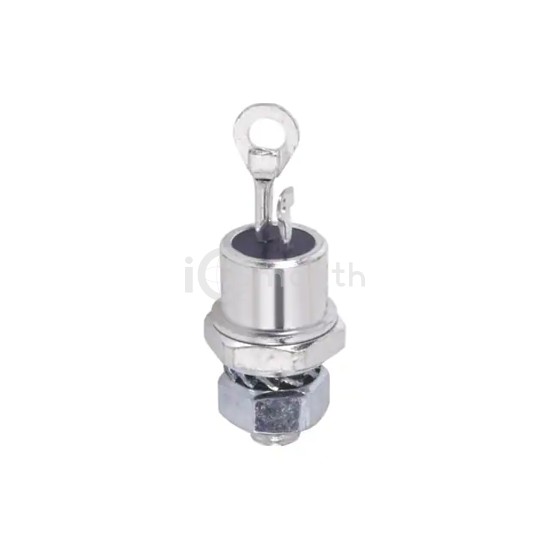

C137P

SCR 1KV 35A TO48

C137P is a Thyristors - SCRs manufactured by Solid State Inc.. SCR 1KV 35A TO48. Key specifications: mounting type Stud Mount, operating temperature 125°C (TJ), package / case TO-208AA, TO-48-3, Stud.

Datasheet Request a Quote

In Stock: 100

Specifications

15 parameters

Product Status	Active
Voltage - Off State	1 kV
Voltage - Gate Trigger (Vgt) (Max)	2.2 V
Current - Gate Trigger (Igt) (Max)	40 mA
Voltage - On State (Vtm) (Max)	2.3 V
Current - On State (It (AV)) (Max)	35 A
Current - On State (It (RMS)) (Max)	35 A
Current - Hold (Ih) (Max)	-

Current - Off State (Max)	-
Current - Non Rep. Surge 50, 60Hz (Itsm)	160A @ 60Hz
SCR Type	Standard Recovery
Operating Temperature	125°C (TJ)
Mounting Type	Stud Mount
Package / Case	TO-208AA, TO-48-3, Stud
Supplier Device Package	TO-48
