Name: 50RIA10
Brand: Solid State Inc.
SKU: 50RIA10
Price: 9.26 USD
Availability: InStock

REF: 50RIA10 Solid State Inc.

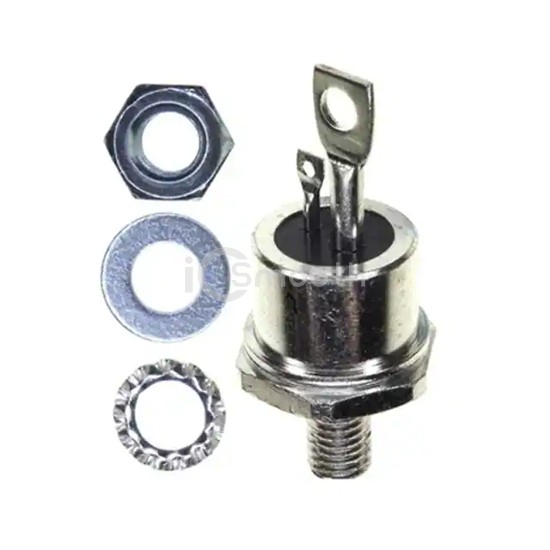

50RIA10

SCR THYRISTOR 50 AMP TO 65

50RIA10 is a Thyristors - SCRs manufactured by Solid State Inc.. SCR THYRISTOR 50 AMP TO 65. Key specifications: mounting type Stud Mount, operating temperature -40°C ~ 125°C (TC), package / case TO-208AC, TO-65-3, Stud.

Datasheet Request a Quote

In Stock: 500

Specifications

15 parameters

Product Status	Active
Voltage - Off State	100 V
Voltage - Gate Trigger (Vgt) (Max)	2.5 V
Current - Gate Trigger (Igt) (Max)	100 mA
Voltage - On State (Vtm) (Max)	1.6 V
Current - On State (It (AV)) (Max)	50 A
Current - On State (It (RMS)) (Max)	80 A
Current - Hold (Ih) (Max)	200 mA

Current - Off State (Max)	15 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	1430A, 1490A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C (TC)
Mounting Type	Stud Mount
Package / Case	TO-208AC, TO-65-3, Stud
Supplier Device Package	TO-208AC (TO-65)
