Name: 2N684
Brand: Solid State Inc.
SKU: 2N684
Price: 6.50 USD
Availability: InStock

REF: 2N684 Solid State Inc.

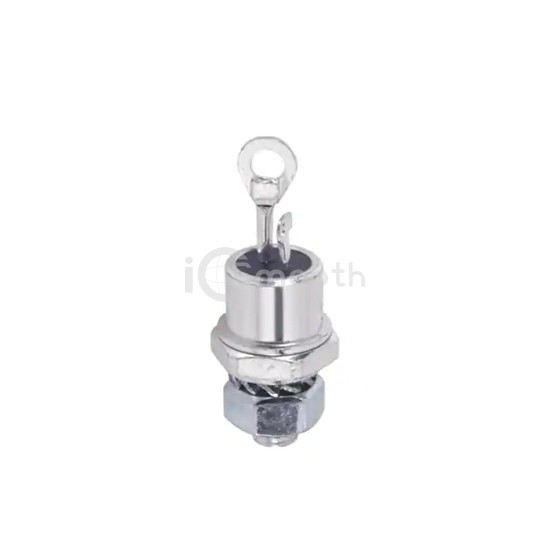

2N684

TO 48 25 AMP SCR

2N684 is a Thyristors - SCRs manufactured by Solid State Inc.. TO 48 25 AMP SCR. Key specifications: mounting type Stud Mount, operating temperature -65°C ~ 125°C (TJ), package / case TO-208AA, TO-48-3, Stud.

Datasheet Request a Quote

In Stock: 2,380

Specifications

15 parameters

Product Status	Active
Voltage - Off State	150 V
Voltage - Gate Trigger (Vgt) (Max)	2 V
Current - Gate Trigger (Igt) (Max)	40 mA
Voltage - On State (Vtm) (Max)	2 V
Current - On State (It (AV)) (Max)	16 A
Current - On State (It (RMS)) (Max)	25 A
Current - Hold (Ih) (Max)	50 mA

Current - Off State (Max)	2 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	150A @ 60Hz
SCR Type	Standard Recovery
Operating Temperature	-65°C ~ 125°C (TJ)
Mounting Type	Stud Mount
Package / Case	TO-208AA, TO-48-3, Stud
Supplier Device Package	TO-48
