Name: 2N4169
Brand: Solid State Inc.
SKU: 2N4169
Price: 6.60 USD
Availability: InStock

REF: 2N4169 Solid State Inc.

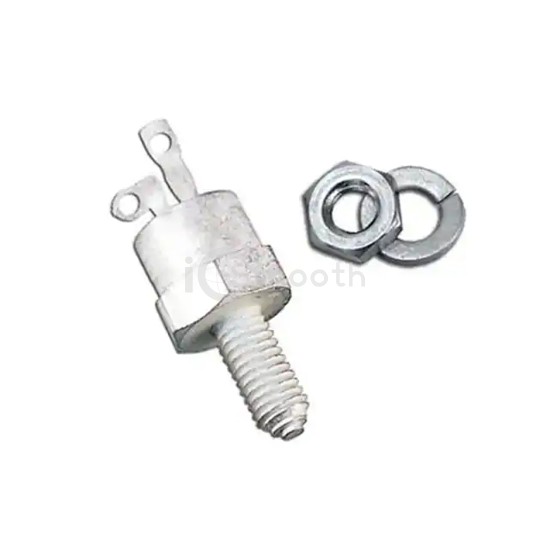

2N4169

TO 64 8 AMP SCR

2N4169 is a Thyristors - SCRs manufactured by Solid State Inc.. TO 64 8 AMP SCR. Key specifications: mounting type Stud Mount, operating temperature -40°C ~ 100°C (TJ), package / case TO-208AB, TO-64-3, Stud.

Datasheet Request a Quote

In Stock: 9,158

Specifications

15 parameters

Product Status	Active
Voltage - Off State	100 V
Voltage - Gate Trigger (Vgt) (Max)	1.5 V
Current - Gate Trigger (Igt) (Max)	30 mA
Voltage - On State (Vtm) (Max)	2 V
Current - On State (It (AV)) (Max)	-
Current - On State (It (RMS)) (Max)	8 A
Current - Hold (Ih) (Max)	30 mA

Current - Off State (Max)	10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	100A @ 60Hz
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 100°C (TJ)
Mounting Type	Stud Mount
Package / Case	TO-208AB, TO-64-3, Stud
Supplier Device Package	TO-64
