Name: 2N3095
Brand: Solid State Inc.
SKU: 2N3095
Price: 28.00 USD
Availability: InStock

REF: 2N3095 Solid State Inc.

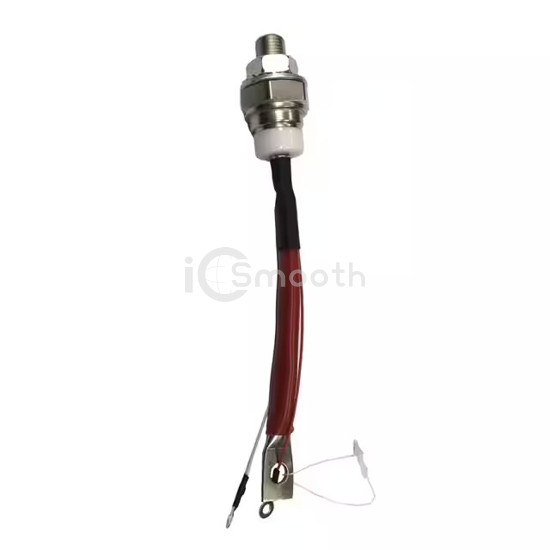

2N3095

SCR , 70 AMP 1.0KV TO-94

2N3095 is a Thyristors - SCRs manufactured by Solid State Inc.. SCR , 70 AMP 1.0KV TO-94. Key specifications: mounting type Stud Mount, operating temperature -40°C ~ 125°C (TJ), package / case TO-209AC, TO-94-4, Stud.

Datasheet Request a Quote

In Stock: 4,832

Specifications

15 parameters

Product Status	Active
Voltage - Off State	1 kV
Voltage - Gate Trigger (Vgt) (Max)	2.5 V
Current - Gate Trigger (Igt) (Max)	110 mA
Voltage - On State (Vtm) (Max)	1.85 V
Current - On State (It (AV)) (Max)	70 A
Current - On State (It (RMS)) (Max)	110 A
Current - Hold (Ih) (Max)	500 mA

Current - Off State (Max)	5 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	1150A, 1200A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Stud Mount
Package / Case	TO-209AC, TO-94-4, Stud
Supplier Device Package	TO-94
