Name: 2N3028
Brand: Solid State Inc.
SKU: 2N3028
Price: 6.00 USD
Availability: InStock

REF: 2N3028 Solid State Inc.

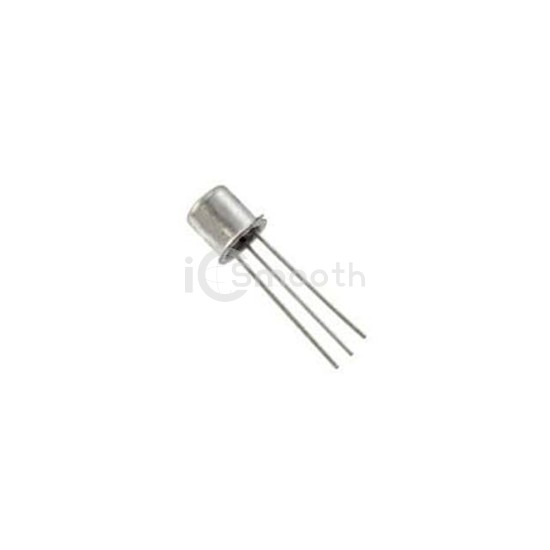

2N3028

SCR 60V 250MA TO18

2N3028 is a Thyristors - SCRs manufactured by Solid State Inc.. SCR 60V 250MA TO18. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 150°C, package / case TO-206AA, TO-18-3 Metal Can.

Datasheet Request a Quote

In Stock: 1,500

Specifications

15 parameters

Product Status	Active
Voltage - Off State	60 V
Voltage - Gate Trigger (Vgt) (Max)	600 mV
Current - Gate Trigger (Igt) (Max)	20 µA
Voltage - On State (Vtm) (Max)	1.5 V
Current - On State (It (AV)) (Max)	500 mA
Current - On State (It (RMS)) (Max)	30 A
Current - Hold (Ih) (Max)	4 mA

Current - Off State (Max)	100 nA
Current - Non Rep. Surge 50, 60Hz (Itsm)	5A, 8A
SCR Type	Standard Recovery
Operating Temperature	-65°C ~ 150°C
Mounting Type	Through Hole
Package / Case	TO-206AA, TO-18-3 Metal Can
Supplier Device Package	TO-18
