Name: 2N2326
Brand: Solid State Inc.
SKU: 2N2326
Price: 4.40 USD
Availability: InStock

REF: 2N2326 Solid State Inc.

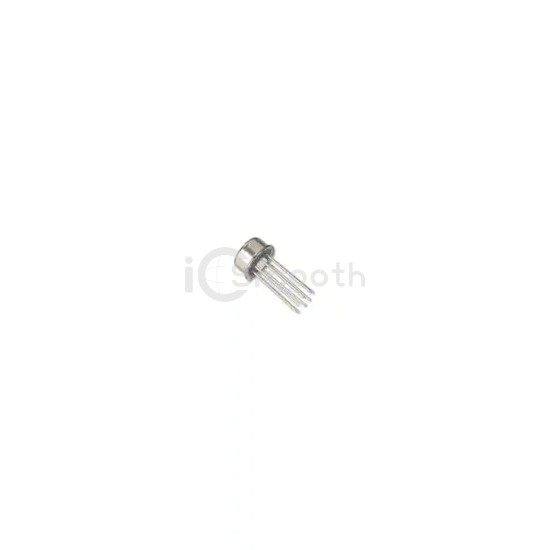

2N2326

TO5 1.6 AMP SCR

2N2326 is a Thyristors - SCRs manufactured by Solid State Inc.. TO5 1.6 AMP SCR. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 125°C (TJ), package / case TO-205AA, TO-5-3 Metal Can.

Datasheet Request a Quote

In Stock: 7,093

Specifications

15 parameters

Product Status	Active
Voltage - Off State	200 V
Voltage - Gate Trigger (Vgt) (Max)	800 mV
Current - Gate Trigger (Igt) (Max)	200 µA
Voltage - On State (Vtm) (Max)	2.2 V
Current - On State (It (AV)) (Max)	-
Current - On State (It (RMS)) (Max)	1.6 A
Current - Hold (Ih) (Max)	2 mA

Current - Off State (Max)	10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	15A
SCR Type	Standard Recovery
Operating Temperature	-65°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-205AA, TO-5-3 Metal Can
Supplier Device Package	TO-5
