Name: 2N1773
Brand: Solid State Inc.
SKU: 2N1773
Price: 6.95 USD
Availability: InStock

REF: 2N1773 Solid State Inc.

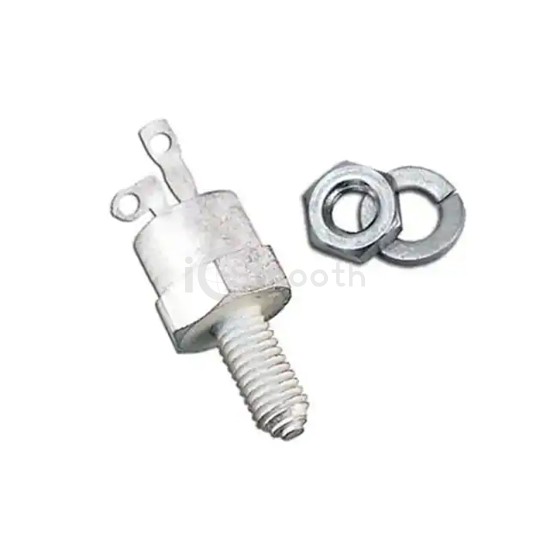

2N1773

TO64 8 AMP SCR

2N1773 is a Thyristors - SCRs manufactured by Solid State Inc.. TO64 8 AMP SCR. Key specifications: mounting type Stud Mount, operating temperature -65°C ~ 125°C, package / case TO-208AB, TO-64-3, Stud.

Datasheet Request a Quote

In Stock: 1,210

Specifications

15 parameters

Product Status	Active
Voltage - Off State	150 V
Voltage - Gate Trigger (Vgt) (Max)	10 V
Current - Gate Trigger (Igt) (Max)	2 A
Voltage - On State (Vtm) (Max)	-
Current - On State (It (AV)) (Max)	4.7 A
Current - On State (It (RMS)) (Max)	7.4 A
Current - Hold (Ih) (Max)	8 mA

Current - Off State (Max)	8 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	60A
SCR Type	Standard Recovery
Operating Temperature	-65°C ~ 125°C
Mounting Type	Stud Mount
Package / Case	TO-208AB, TO-64-3, Stud
Supplier Device Package	TO-64
