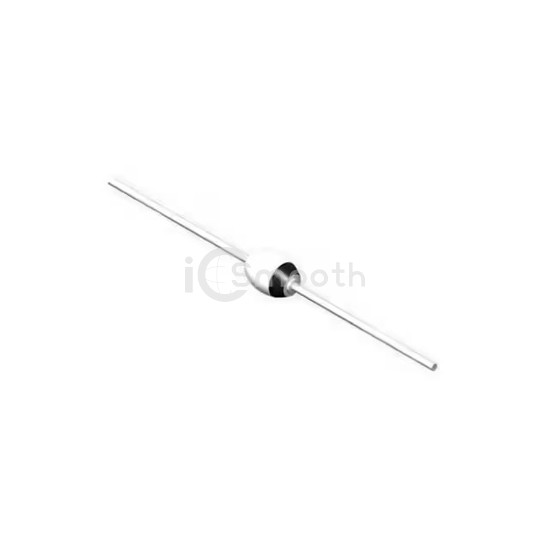

DO-204AP 2.5 AMP RECTIFIER
1N5803 is a Diodes - Rectifiers - Single manufactured by Solid State Inc.. DO-204AP 2.5 AMP RECTIFIER. Key specifications: mounting type Through Hole, package / case DO-204AP, Axial.
In Stock: 6,065
| Product Status | Active |
|---|---|
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 75 V |
| Current - Average Rectified (Io) | 2.5A |
| Voltage - Forward (Vf) (Max) @ If | 875 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 25 ns |
| Current - Reverse Leakage @ Vr | 1 µA @ 75 V |
|---|---|
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | DO-204AP, Axial |
| Supplier Device Package | DO-204AP |
| Operating Temperature - Junction | -65°C ~ 175°C |
