20 AMP SILICON RECTIFIER DO-5

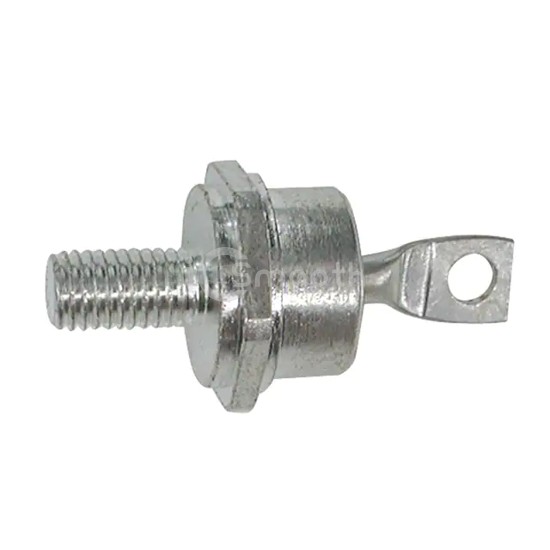

1N1196R is a Diodes - Rectifiers - Single manufactured by Solid State Inc.. 20 AMP SILICON RECTIFIER DO-5. Key specifications: mounting type Stud Mount, package / case DO-203AB, DO-5, Stud.
In Stock: 5,507
| Product Status | Active |
|---|---|
| Diode Type | Standard, Reverse Polarity |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Current - Average Rectified (Io) | 40A |
| Voltage - Forward (Vf) (Max) @ If | 1.19 V @ 90 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 10 µA @ 400 V |
|---|---|
| Capacitance @ Vr, F | - |
| Mounting Type | Stud Mount |
| Package / Case | DO-203AB, DO-5, Stud |
| Supplier Device Package | DO-5 |
| Operating Temperature - Junction | -65°C ~ 200°C |
