PC853XNNSZ0F

In Stock: 5,589

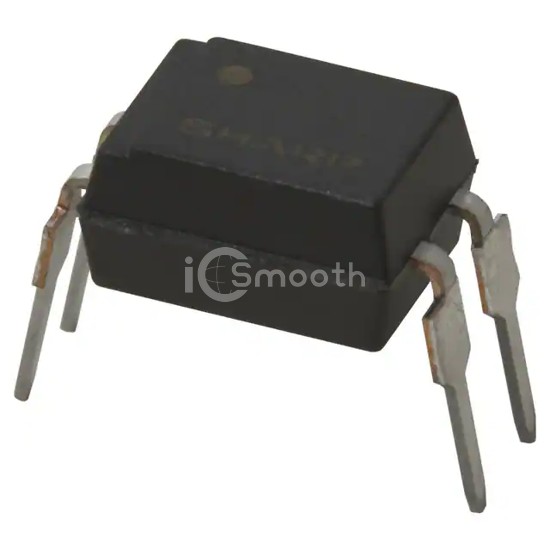

PC853XNNSZ0F - SHARP/Socle Technology - Optoisolators - Transistor, Photovoltaic Output
REF: PC853XNNSZ0F SHARP/Socle Technology
PC853XNNSZ0F

SHARP/Socle Technology

ISOLATOR

PC853XNNSZ0F is a Optoisolators - Transistor, Photovoltaic Output manufactured by SHARP/Socle Technology. ISOLATOR. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-DIP (0.300", 7.62mm).

Request a Quote

In Stock: 5,589

Tiered Pricing USD
8,000+ $0.4858 —
10,000+ $0.4746 -2% BEST

Specifications

18 parameters
Product StatusDiscontinued at Digi-Key
Number of Channels1
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)1000% @ 10mA
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)100µs, 20µs
Input TypeDC
Output TypeDarlington
Voltage - Output (Max)350V
Current - Output / Channel150mA
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)1.2V
Operating Temperature-30°C ~ 100°C
Mounting TypeThrough Hole
Package / Case4-DIP (0.300", 7.62mm)
Supplier Device Package4-DIP
