PC852XNNSZ1H

In Stock: 6,368

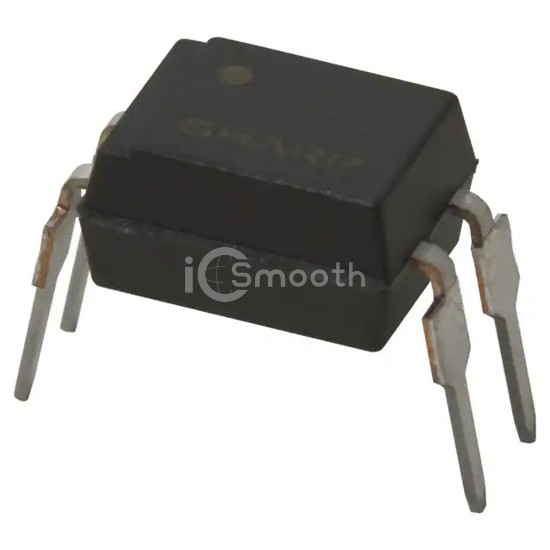

PC852XNNSZ1H - SHARP/Socle Technology - Optoisolators - Transistor, Photovoltaic Output
REF: PC852XNNSZ1H SHARP/Socle Technology
PC852XNNSZ1H

SHARP/Socle Technology

OPTOISOLATOR 5KV DARL DIP

PC852XNNSZ1H is a Optoisolators - Transistor, Photovoltaic Output manufactured by SHARP/Socle Technology. OPTOISOLATOR 5KV DARL DIP. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-DIP (0.300", 7.62mm).

Request a Quote

In Stock: 6,368

Specifications

18 parameters
Product StatusDiscontinued at Digi-Key
Number of Channels1
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)1000% @ 1mA
Current Transfer Ratio (Max)15000% @ 1mA
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)100µs, 20µs
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)350V
Current - Output / Channel150mA
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)1.2V
Operating Temperature-30°C ~ 100°C
Mounting TypeThrough Hole
Package / Case4-DIP (0.300", 7.62mm)
Supplier Device Package4-DIP
