PC851XNNSZ1H

In Stock: 1,392

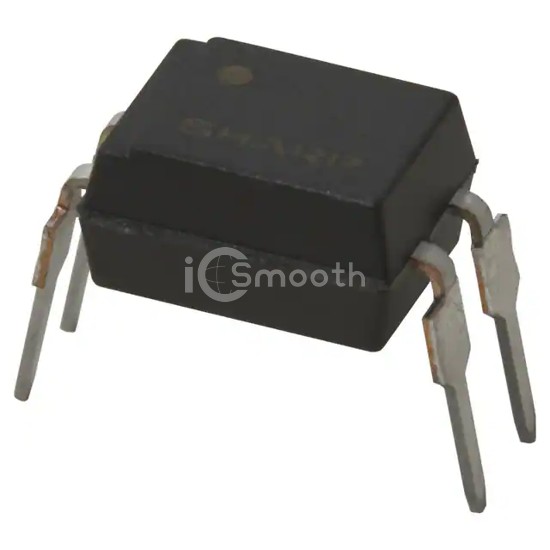

PC851XNNSZ1H - SHARP/Socle Technology - Optoisolators - Transistor, Photovoltaic Output
REF: PC851XNNSZ1H SHARP/Socle Technology
PC851XNNSZ1H

SHARP/Socle Technology

OPTOISOLATOR 5KV TRANS DIP

PC851XNNSZ1H is a Optoisolators - Transistor, Photovoltaic Output manufactured by SHARP/Socle Technology. OPTOISOLATOR 5KV TRANS DIP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 1,392

Specifications

18 parameters
Product StatusDiscontinued at Digi-Key
Number of Channels1
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)40% @ 5mA
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)4µs, 5µs
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)350V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)300mV
Operating Temperature-25°C ~ 100°C
Mounting TypeThrough Hole
Package / Case4-DIP (0.300", 7.62mm)
Supplier Device Package4-DIP
